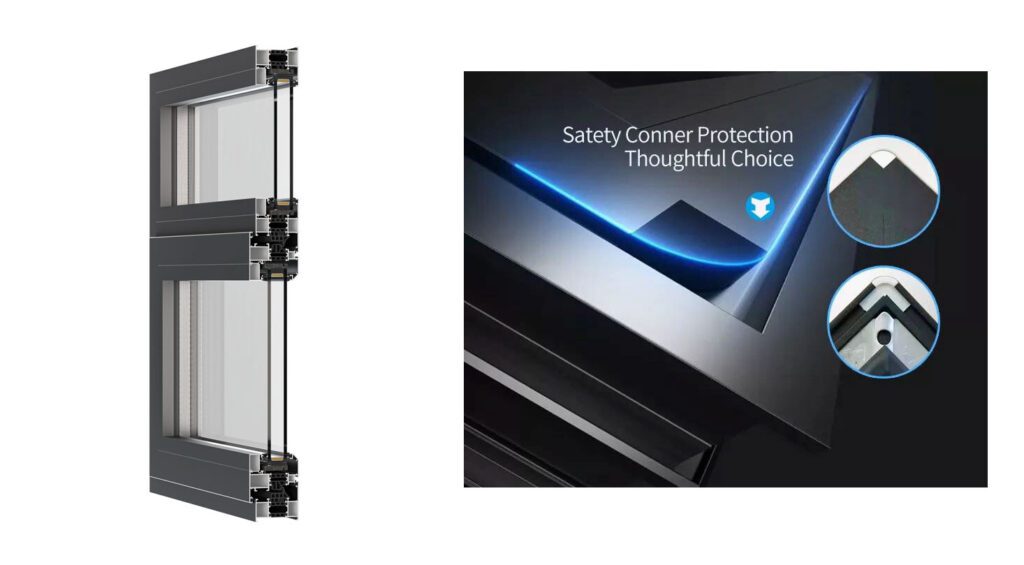

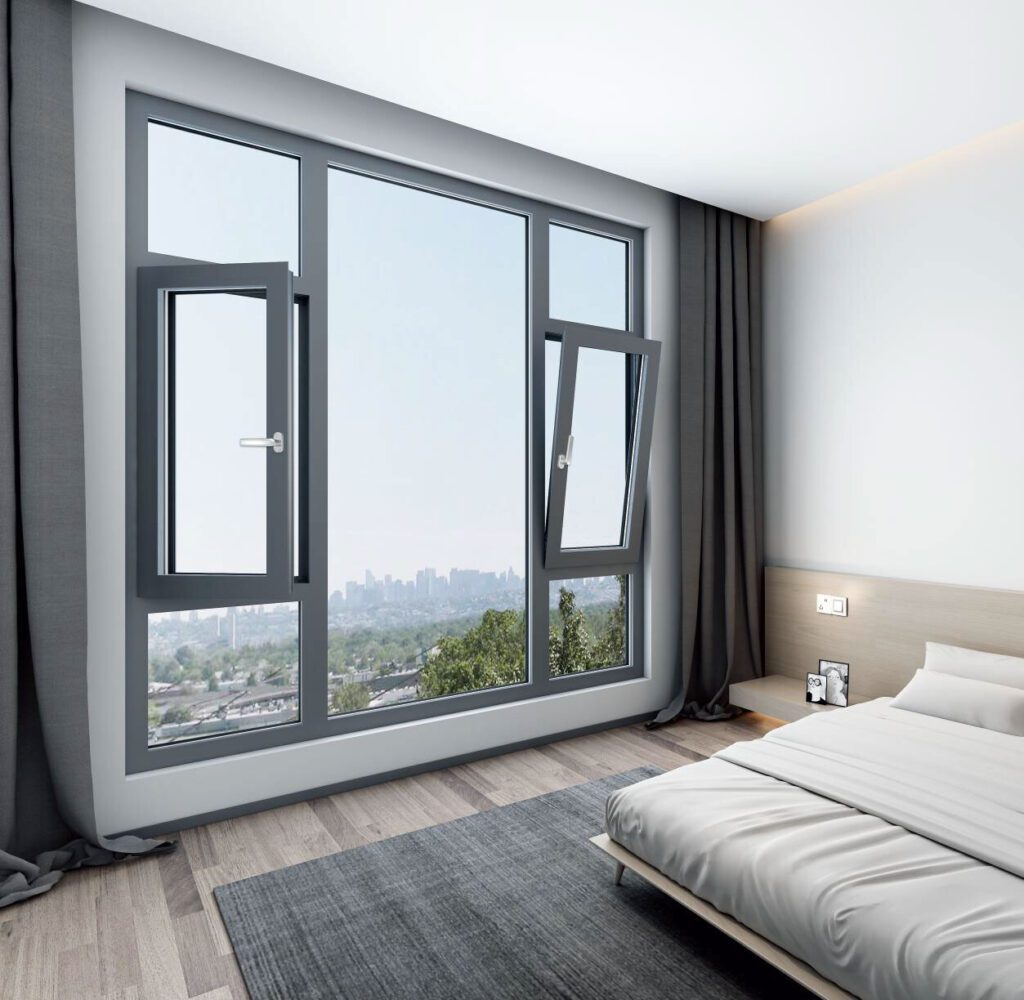

CR 170 Series — Competitive Price System Windows & Doors
- Uw value: 1.5–1.9 (M²·K) (Turn to U Factor 0.26 – 0.33)
- Glass SPEC: 5+9A+5+9A+5 / 5+23A+5 / 6+12A+6 / 5+15A+5
- Profile thickness: ≥ 1.4 mm
- Automotive grade foam composite EPDM rubber seal
- Corner jointing technology with glue injection
- 30 mm PA66GF25 multi-cavity Nylon insulation strip
- Thermal chamber can be filled with foam
- Germany Siegenia hardware, Intruder resistance up to RC2
- Safety corner protection

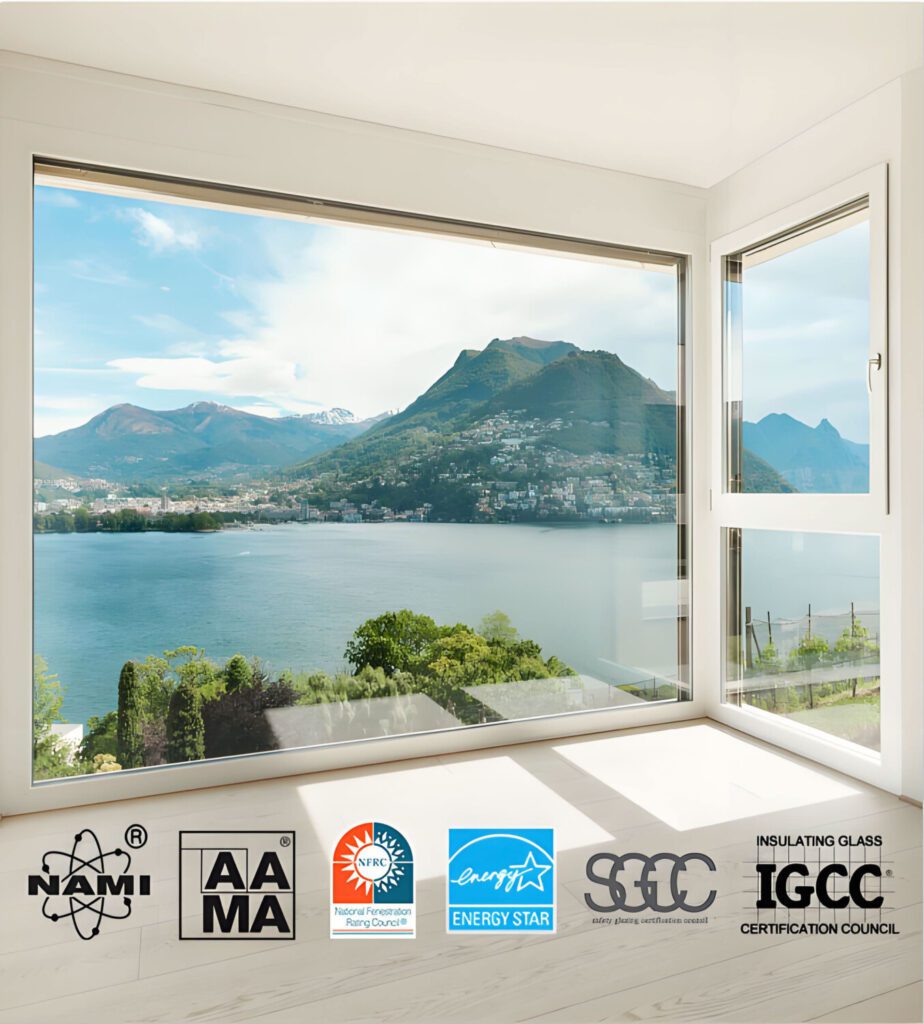

CR 176 Series — NFRC & NAMI Certified Energy-Saving System Windows & Doors
Tested to ASTM E283/E283M-2019, E547-00 (R2016), E330/E330M-2014 (R2021), F588-17, and NFRC 100/200/500 standards.
- European standard 6060-T66 super high precision aluminum profile
- Window Profile thickness: ≥ 1.8mm
- Door Profile thickness ≥ 2.2mm
- Glass SPEC: 5Low-e+12Ar+5Low-e+12Ar+5; warm edge spacer
- Tested U factor for tilt & turn window are 0.2-0.33 (U.S./I-P), equals to U value 1.14-1.87 W(M²·K), depengs on glazing chosen
- Corner jointing technology with glue injection
- 35.3mm PA66GF25 multi-cavity Nylon insulation strip
- Germany Siegenia hardware, Intruder resistance up to RC2
- Nail fins for North America is available
- Wheelchair accessible door sill for swing doors
CR 176 series–NFRC & NAMI Certified
Windows & Doors Performance Guide
| Window / Door Type | Fixed | Tilt & turn | Casement | Awning | Inswing door | Outswing door |
|---|---|---|---|---|---|---|
| AAMA Rating | CW-PG60 | CW-PG60 | CW-PG60 | CW-PG60 | CW-PG60 | CW-PG60 |
| Test size | 1524 × 1524 | 1219 × 1829 | 914 × 1524 | 1200 × 1000 | — | — |
| Air Leakage | 0.05 L/s·m² | 0.19 L/s·m² | 0.32 L/s·m² | 0.05 L/s·m² | — | — |
| Water Penetration | 720 Pa | 440 Pa | 440 Pa | 720 Pa | — | — |
| Design Pressure | ±2880 Pa | ±2880 Pa | ±2880 Pa | ±2880 Pa | ±2880 Pa | ±2880 Pa |
| U factor with double glazing | 0.27–0.32 | 0.29–0.33 | 0.37–0.40 | 0.37–0.40 | 0.29–0.32 | 0.32–0.35 |
| U factor with Triple glazing | 0.17–0.20 | 0.20–0.23 | 0.27–0.30 | 0.27–0.30 | 0.21–0.24 | 0.23–0.26 |
| SHGC with double glazing | 0.23–0.47 | 0.20–0.42 | 0.16–0.31 | 0.16–0.31 | 0.18–0.36 | 0.18–0.37 |
| SHGC with Triple glazing | 0.18–0.39 | 0.16–0.34 | 0.12–0.26 | 0.12–0.26 | 0.14–0.30 | 0.14–0.30 |
Physical performance test standard: ASTM E283/E283M-2019; ASTM E547-00 (R2016); ASTM E330/E330M-2014 (R2021); ASTM F588-17; AAMA/WDMA/CSA101/I.S.2/A440-17 Clause 9.3.1, Clause 9.3.6.4.2, Clause 9.3.6.5.2
Thermal performance test standard: ANSI/NFRC 100-2020, ANSI/NFRC 200-2020, NFRC 500-2017

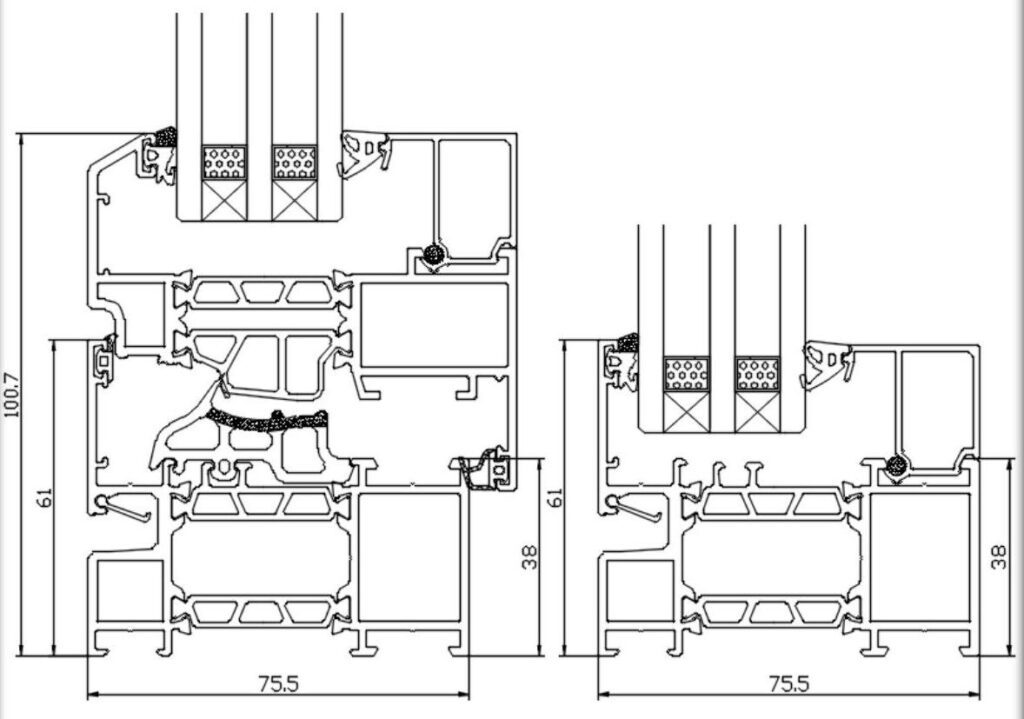

Section drawing for Tilt & Turn & Fixed Window
NFRC Thermal Value – CR 176 Tilt & Turn Window
| Glass specification | U factor | SHGC | VT | Glazing thick |
|---|---|---|---|---|
| 5S1.16-12Ar-6C | 0.33 | 0.42 | 0.57 | 23 mm |
| 5S1.16-12Ar-5 Yea | 0.29 | 0.39 | 0.53 | 22 mm |
| 6PDE59B-12Ar-6C | 0.32 | 0.21 | 0.37 | 24 mm |
| 5S1.16-12Ar-5S1.16-12Ar-5C | 0.23 | 0.34 | 0.53 | 39 mm |
| 6PDE59B-12Ar-5S1.16-12Ar-5C | 0.22 | 0.18 | 0.33 | 40 mm |
| 5S1.16-16Ar-5S1.16-16Ar-5 Yea | 0.21 | 0.33 | 0.47 | 47 mm |

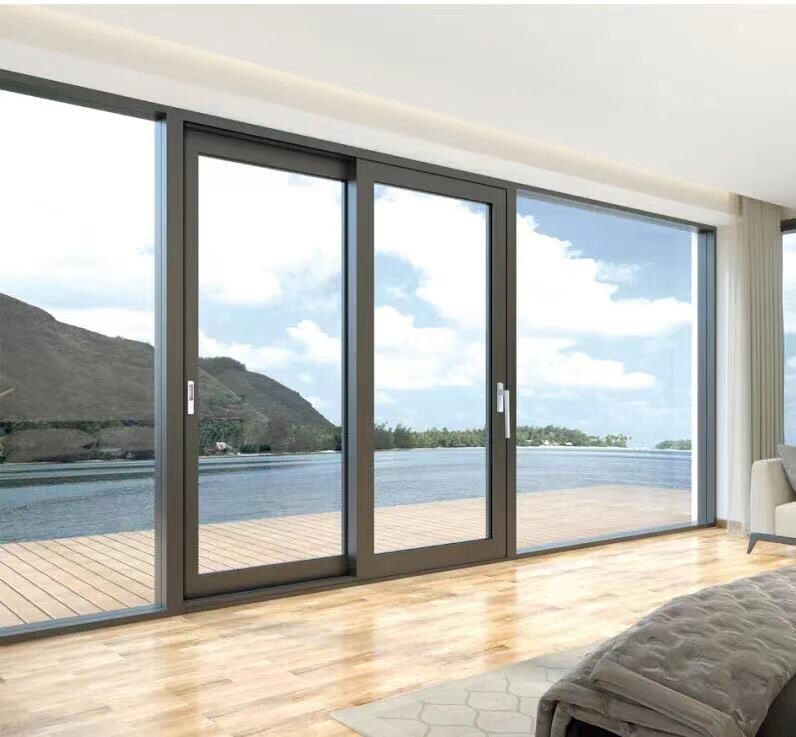

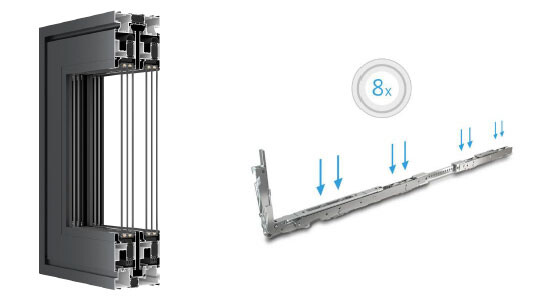

CR 152 Series—Lift & Sliding Doors
- European standard 6063-T5 super high precision aluminum profile, Profile thickness: ≥ 2.2mm
- Glass specification: 5+12A+5+12A+5/6+20A+6/6+12A+6+12A+6
- Automotive grade foam composite EPDM rubber seal
- C shape 24mm PA66GF25 Nylon thermal insulation strip
- Maximum door panel height 3.3m
- Maximum door panel width 3.23m
- Germany Brand HAUTAU or Siegenia hardware
- 440kg Large weight permit
- Tested wind pressure ±5000Pa

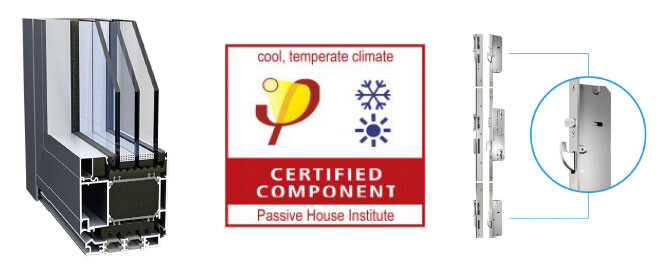

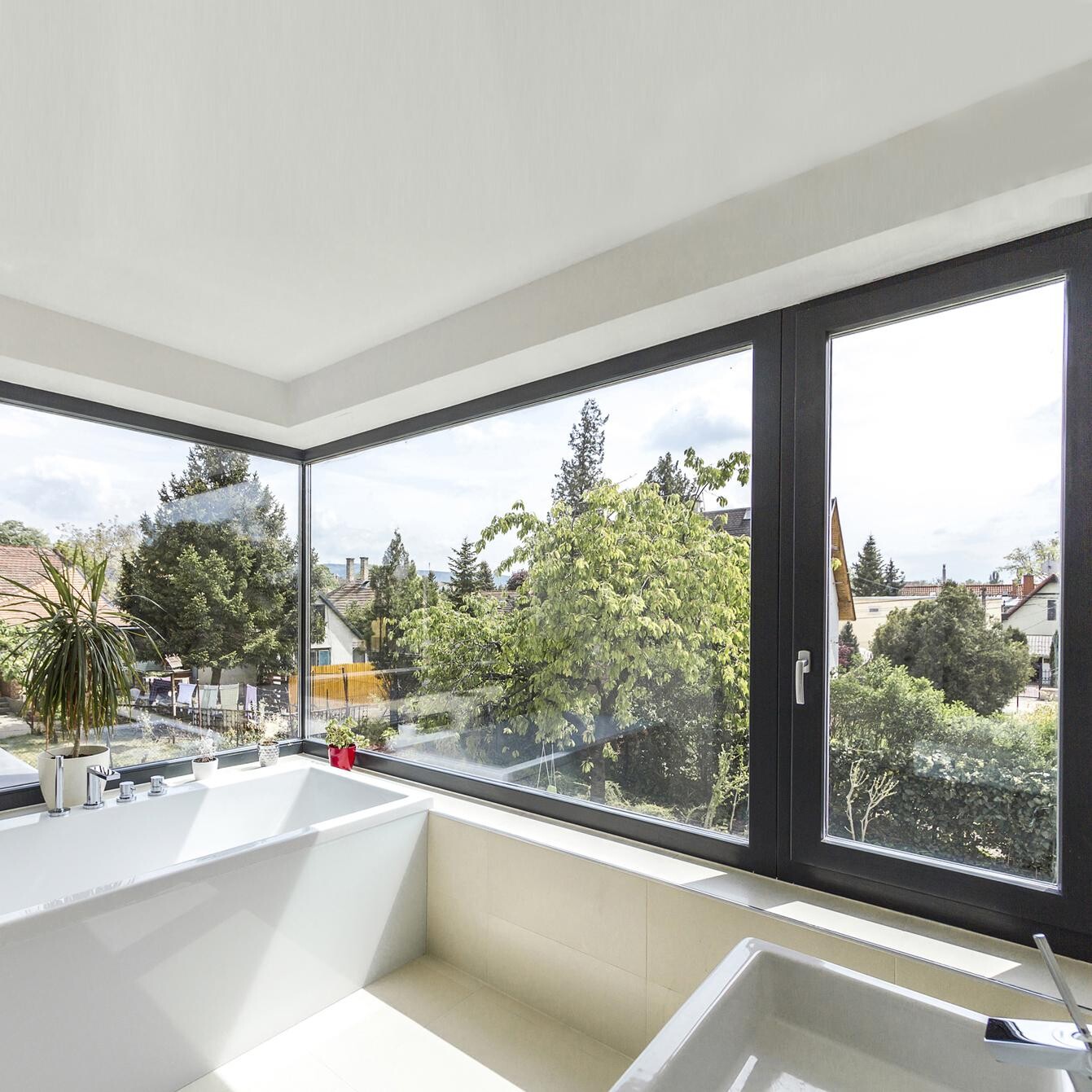

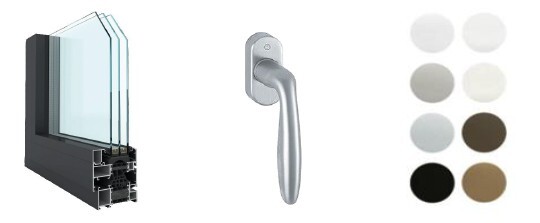

CR 201 Series—Passive House Windows
- European standard 6060-T66 super high precision aluminum profile, Window Profile thickness: ≥ 1.8 mm
- Uw value: 0.79 W(M²·K) (Turns to U Factor 0.14), PHI certificated
- Glass specification: 5 mm low-e + 16 Ar + 5 mm low-e + 16 Ar + 5 mm, warm edge spacer, Ug = 0.7 W(M²·K)
- Thermal strip: 64 mm wide special-shaped multi-cavity Technofrom brand PA66 nylon
- Chamber: insulation closed-cell sponge filled
- Automotive grade foam composite EPDM rubber seal
- Hardware: Germany Brand Siegenia invisible/concealed hinge

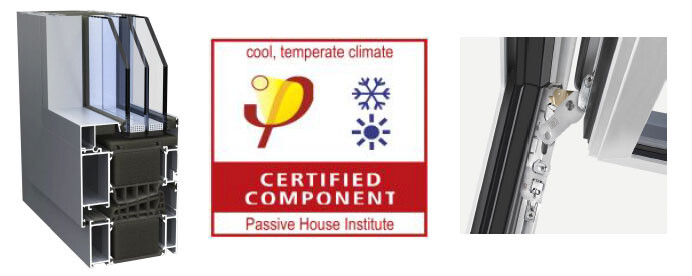

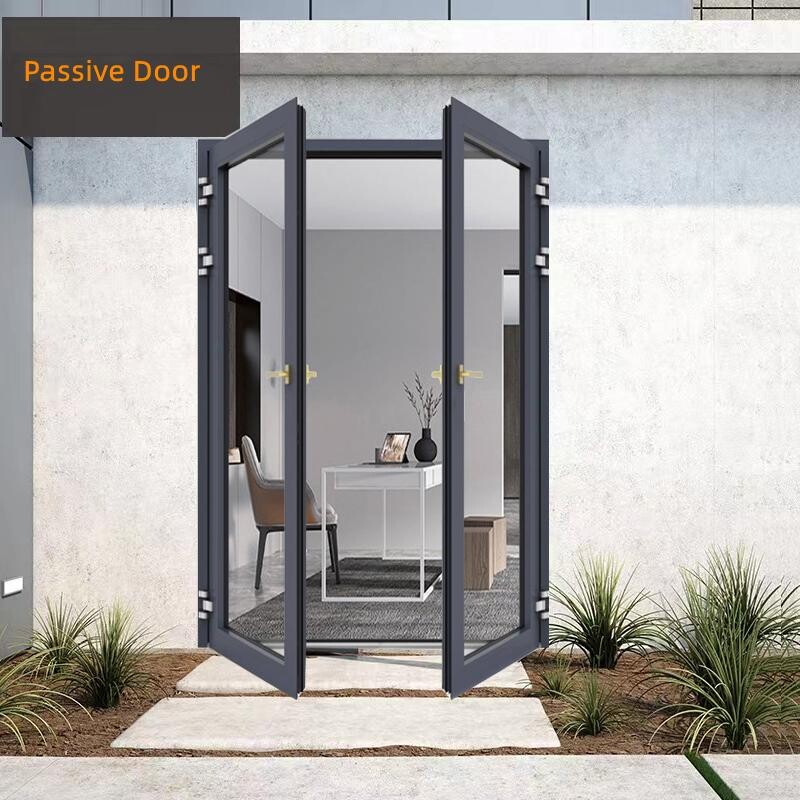

CR 210 Series— Passive House Door
- European standard 6060-T66 super high precision aluminum profile, Door Profile thickness: ≥ 2.0 mm
- Ub value: 0.79 W(M²·K) (Turns to U Factor 0.14), PHI certificated
- Glass specification: 5 mm low-e + 16 Ar + 5 mm low-e + 16 Ar + 5 mm, warm edge spacer, Ug = 0.7 W(M²·K)
- Thermal strip: 64 mm wide special-shaped multi-cavity Technofrom brand PA66 nylon
- Chamber: insulation closed-cell sponge filled
- Automotive grade foam composite EPDM rubber seal
- Hardware: Germany Brand Siegenia invisible/concealed hinge

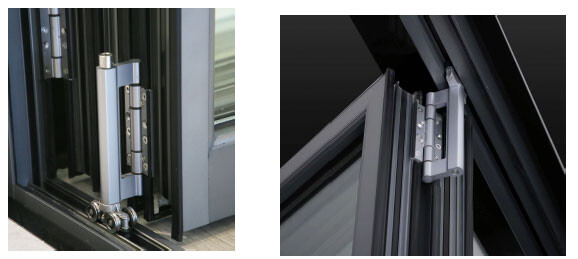

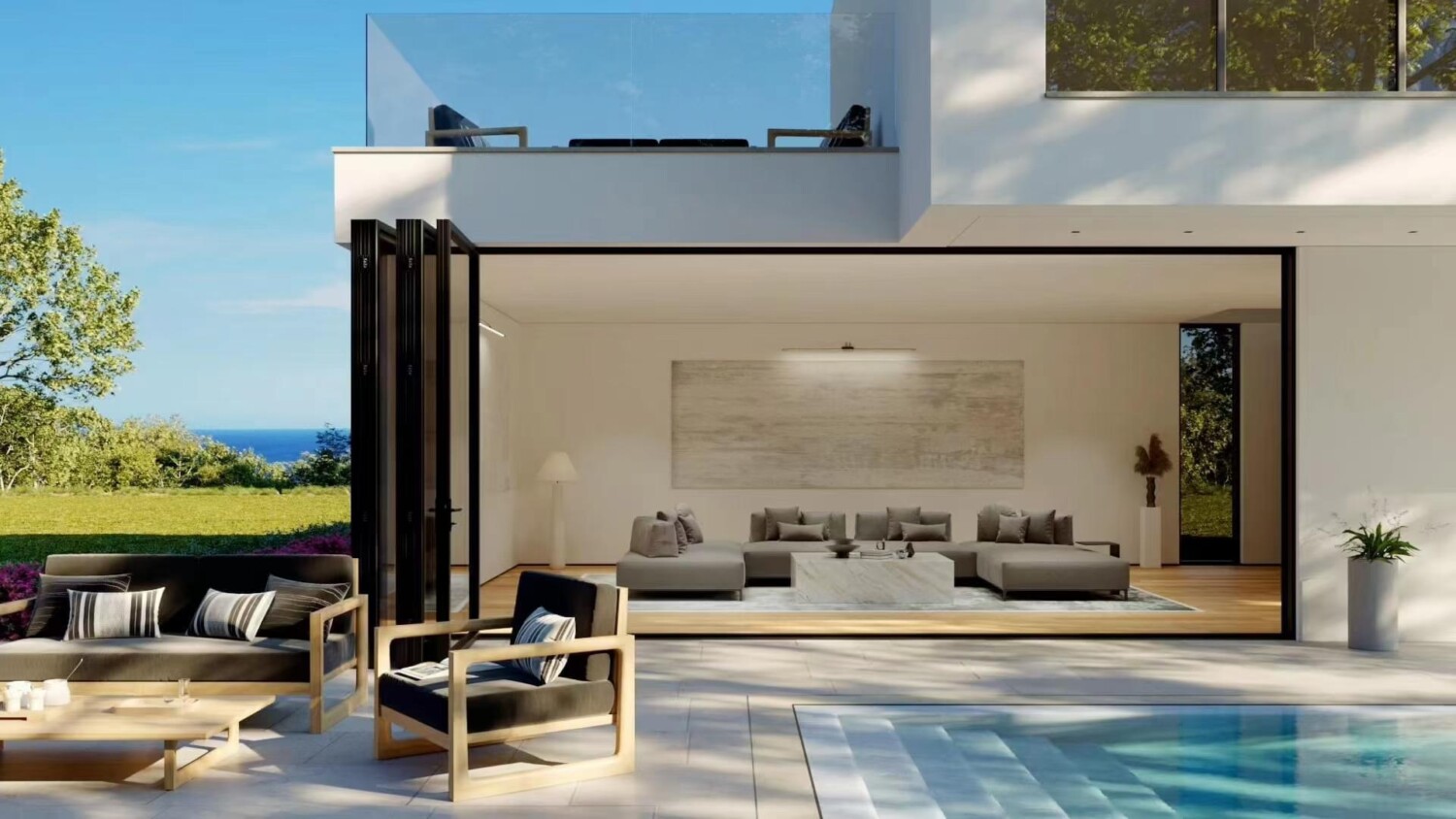

CR 190 Series— Large View Patio Folding Door
- European standard 6063-T5 super high-precision aluminum profile, profile thickness ≥ 2.0 mm

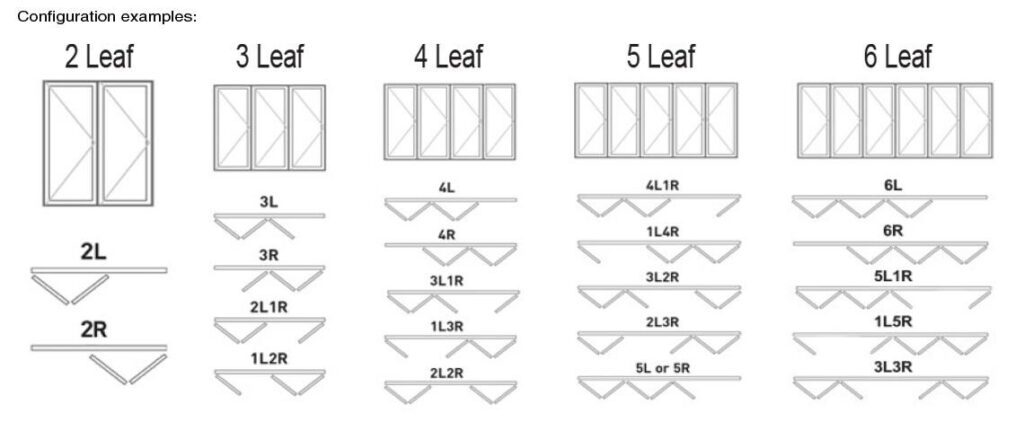

- Customized various opening styles; can be as long as 130 feet
- Height can be up to 11 feet
- Glass spec: 5Low-e + 9Ar + 5Low-e + 9Ar + 5/6Low-e + 12Ar + 6
- PET retractable screen can be equipped
- EPDM rubber seal for better heat insulation, moisture, and noise reduction
- High-quality CMECH hardware and accessories used
- Smart electronic lock available
- Finger protection integrated into the door panel
